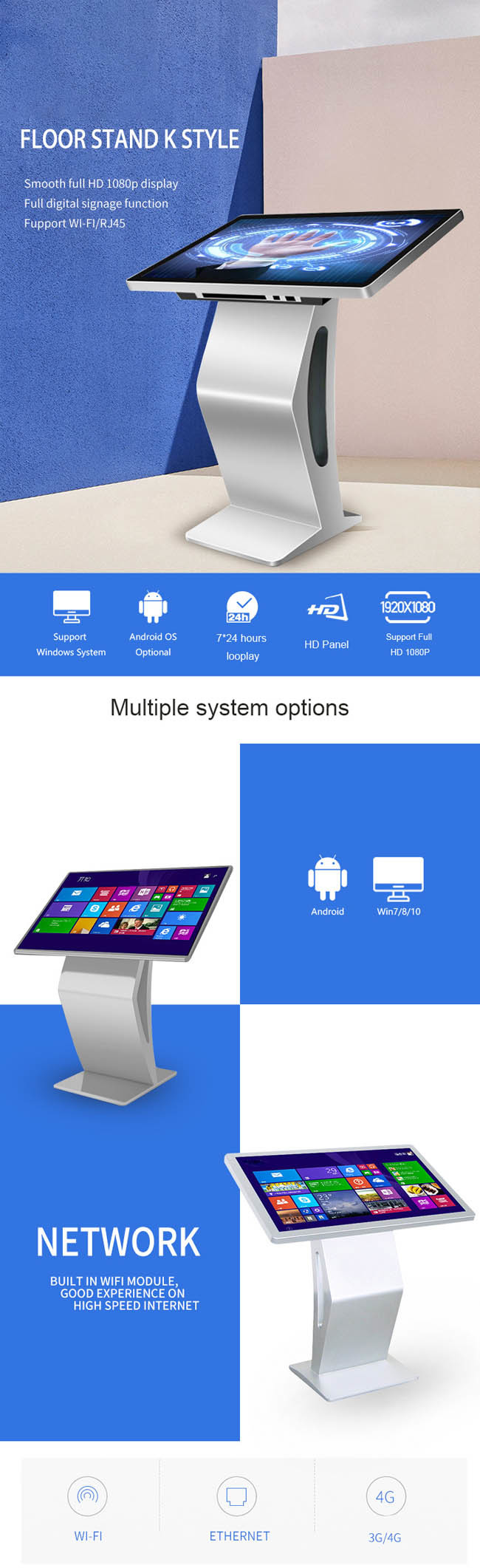

ODM Horizontal Touch Screen Digital Signage 32 Inch Touch Screen Kiosk

Guangdong Tsinghill Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap ODM Horizontal Touch Screen Digital Signage 32 Inch Touch Screen Kiosk from wholesalers

    Buy cheap ODM Horizontal Touch Screen Digital Signage 32 Inch Touch Screen Kiosk from wholesalers
    • Buy cheap ODM Horizontal Touch Screen Digital Signage 32 Inch Touch Screen Kiosk from wholesalers

    ODM Horizontal Touch Screen Digital Signage 32 Inch Touch Screen Kiosk

    Ask Lasest Price
    Brand Name : TSINGHILL
    Model Number : TQ32
    Certification : CE ROHS FCC CCC ISO9001 CNAS
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100,000 Units per Month
    Delivery Time : 5-30 days
    • Product Details
    • Company Profile

    ODM Horizontal Touch Screen Digital Signage 32 Inch Touch Screen Kiosk

    Self-Service 32 Inch Horizontal Touch Screen Kiosk Information Inquiry Machine


    Product Specifications:

    Specifications
    Model No.TQ32
    Panel size32“ TFT-LCD
    Maximum resolution1366x768
    Display color16.7M
    Pixel Pitch(mm)0.511(H)×0.511(V)
    Brightness (nits)500cd/m2
    Contrast1500:1
    Visual angle178°/178°
    Response time8ms
    Horizontal frequency50-70KHZ
    Vertical frequency56-75KHZ
    Life(hrs)>60,000(hrs)
    Touch Panel
    SpecificationInfrared touch screen
    Positioning
    accuracy
    ±2mms
    Transmittance≥92%
    Hardness7H
    Click mannerdouble point, multipoint(optional)
    Response time<=10ms
    Output Resolution4096X4096
    Life timeSingle point of more than 60 million
    Input and output
    Composite video input3(BNC×3)
    YUV Input1 (BNC×3)
    S-video1(BNC X2)
    D-15 pin RGB input1
    HD1
    Composite video output2(BNC×2)
    L/R Audio input1 (RCAx2)
    L/R Audio output1 (RCAx2)
    USB2.0/Serial/SP2 input2(for touch screen use)
    Video
    Color systemPAL/NTSC/SECAM
    Compatible HD input/DVI480P,576P,720P,1080I,1080P
    3D Comb filterYes
    Video reduction noiseYes
    OSD display( screen menu display)
    Menu languageChinese/English( multiple language option required)
    Computer
    Main chipsetIntel G41+ICH7
    Main boardONDA G41
    System bus frequency800/1066/1333 MHz
    Graphics cardIntegrated IntelGMX 4500
    Audio cardIntegrated AC97
    Network cardIntegrated 10/100/1000M adaptive
    Memory2G DDRIII (max 4G)
    Hard Disk320G SATA
    Operation systemWindows 7
    Power
    Power supplyAC100V~240V,50/60Hz
    Maximum power consumption<=55W
    Standby power consumption<=1W
    Temperature
    Working temperature0°C~50°C
    Storage temperature-10°C~60°C
    Working humidity20%~80%
    Storage humidity5%~95%
    Appearance
    Panel color/appearanceWhite, black, customized
    Panel materialSPCC/Aluminum/Customized
    InstallationWall-mounted(default), desktop
    CertificateCE/FCC/3C/RoHS
    AccessoriesManual,remote control, data line1.5 M, power line 1.8 M

    Company Profile:


    1. Having our own ERP system to control our factory’s procedures help us make sure our delivery times and product quality. Over 8 years of experience gives us the edge!

    2. We currently provide OEM/ODM services for many customers worldwide, building, proof of concepts, designs and large orders is our strength.

    3. Here at TSINGHILL, we understand that our new partners need to order samples, we encourage them to do so, once you have seen the quality of our products you will understand why we are number one in our market.

    4. Many of our current products are available in a very fast manner in order for you to test and approve of our strong quality of goods. Don’t be fooled by some factories that will offer the best products below the market price, you pay for what you get is the safe way to look at your over sea’s purchases.

    5. At TSINGHILL, we offer quality services from the ideas to proof of concept and finally to sample prototypes, this gives us experience and a wide range of intelligent displays product knowledge.


    Product Details:

    ODM Horizontal Touch Screen Digital Signage 32 Inch Touch Screen KioskODM Horizontal Touch Screen Digital Signage 32 Inch Touch Screen Kiosk

    FAQ:


    Q:Can you provide OEM service for the all in one interactive flat panel?
    A: Yes,well supported.We can customize it according to your requests.

    Q:Do you have stock?
    A:We keep 3000-5000 units in Stock every single Month.

    Q: Is your company a real manufacturer?
    A: Our company is the professional manufacturer in Foshan, Guangdong province, you are the mostly welcomed to visit our factory anytime.

    Q: How is the quality of the product?
    A: Our products have been strictly tested high quality by QC before shipping to customers.And we do own brand selling in domestic
    China market on line. Our brand is “TSINGHILL. So quality is the most important thing for us!

    Q: Does the product only use for school?
    A: Our products are widely used in hospital, school, office etc.

    Q: How can I trust your product quality?
    A: We have more than 10 years export experience. From material purchasing to product delivery, we have professional staff and
    procedures to prevent potential quality risk. Our products have been approved by CE & ROHS, etc.

    Q: What's your after-sale service?
    A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
