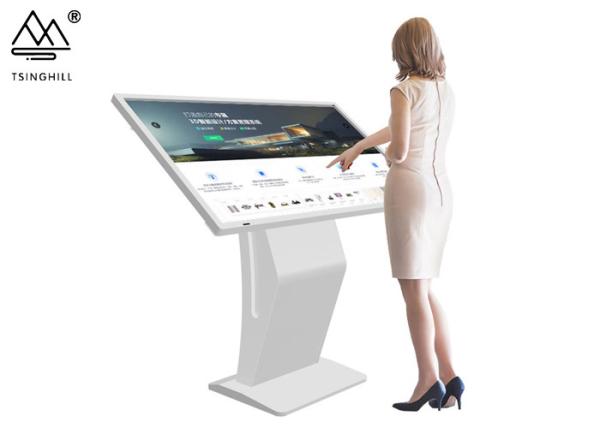

Customized 43 Inch Horizontal Touch Information Inquiry Machine For
Hotel
Product Specifications:
| Specifications |
| Model No. | TQ43 |
| Panel size | 43“ TFT-LCD |
| Maximum resolution | 1366x768 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.511(H)×0.511(V) |
| Brightness (nits) | 500cd/m2 |
| Contrast | 1500:1 |
| Visual angle | 178°/178° |
| Response time | 8ms |
| Horizontal frequency | 50-70KHZ |
| Vertical frequency | 56-75KHZ |
| Life(hrs) | >60,000(hrs) |
| Touch Panel |
| Specification | Infrared touch screen |
Positioning
accuracy | ±2mms |
| Transmittance | ≥92% |
| Hardness | 7H |
| Click manner | double point, multipoint(optional) |
| Response time | <=10ms |
| Output Resolution | 4096X4096 |
| Life time | Single point of more than 60 million |
| Input and output |
| Composite video input | 3(BNC×3) |
| YUV Input | 1 (BNC×3) |
| S-video | 1(BNC X2) |
| D-15 pin RGB input | 1 |
| HD | 1 |
| Composite video output | 2(BNC×2) |
| L/R Audio input | 1 (RCAx2) |
| L/R Audio output | 1 (RCAx2) |
| USB2.0/Serial/SP2 input | 2(for touch screen use) |
| Video |
| Color system | PAL/NTSC/SECAM |
| Compatible HD input/DVI | 480P,576P,720P,1080I,1080P |
| 3D Comb filter | Yes |
| Video reduction noise | Yes |
| OSD display( screen menu display) |
| Menu language | Chinese/English( multiple language option required) |
| Computer |
| Main chipset | Intel G41+ICH7 |
| Main board | ONDA G41 |
| System bus frequency | 800/1066/1333 MHz |
| Graphics card | Integrated IntelGMX 4500 |
| Audio card | Integrated AC97 |
| Network card | Integrated 10/100/1000M adaptive |
| Memory | 2G DDRIII (max 4G) |
| Hard Disk | 320G SATA |
| Operation system | Windows 7 |
| Power |
| Power supply | AC100V~240V,50/60Hz |
| Maximum power consumption | <=55W |
| Standby power consumption | <=1W |
| Temperature |
| Working temperature | 0°C~50°C |
| Storage temperature | -10°C~60°C |
| Working humidity | 20%~80% |
| Storage humidity | 5%~95% |
| Appearance |
| Panel color/appearance | White, black, customized |
| Panel material | SPCC/Aluminum/Customized |
| Installation | Wall-mounted(default), desktop |
| Certificate | CE/FCC/3C/RoHS |
| Accessories | Manual,remote control, data line1.5 M, power line 1.8 M |
The reason why choose us?
1 We have our own ERP of the main manufacturer for digital signage
and LCD video wall with over 8 years experience of producing
products.
2 We could provide OEM/ODM service for all kinds of customers. Our
professional support team will provide service online 24 hours for
customers.
3 We have a very strong quality control samples are always
available for checking quality and can be dispatched to you very
quickly.
4 Design ability: artworks/ Instruction manual/ product design
according to customer's requirement.
5 We have our own ERP systems : Shorten lead times at low cost with
responsive production planning.
6 Warranty (1-3 year)
Product Details:
FAQ:
Q: What's your guarantee for the products?
A: All our products have one-year guarantee from the shipping date.
And it is OK to upgrade to two or three years guarantee with
additional cost.
Q: What kinds of payment methods does your company accept?
A: Most of payment methods are accepted here, such as T/T, Western
Union, Credit Card, etc.
Q: Do you accept door to door shipping service?
A: Yes, we do. Also we have favourable price by
DHL/FEDEX/UPS/TNT/ARAMEX, etc.
Q: Are you a factory or trading company ? What is the MOQ of touch
screen?
A: Yes, we are factory direct sales and have some items in stock ,
you can order 1pc for test.
Q: What is the delivery time? Where do you ship of touch screen?
A: Generally speaking , the goods can be delivered within 5-7 days
for small orders, and the production time about 15 days for more
than 10pcs. In addition, our factory is located in Foshan,
Guangdong. If you have forwarder in Shenzhen or Guangzhou, we can
help to ship goods to your forwarder .
Q: Could you provide OEM&ODM service of touch screen?
A: Of course , including software, packaging, product logo,
etc.,consult customer service for more details.
Q: What is the warranty period of touch screen?
A: Normally it is 1 year, we have a professional after-sales
service team, specific details can consult customer service.
