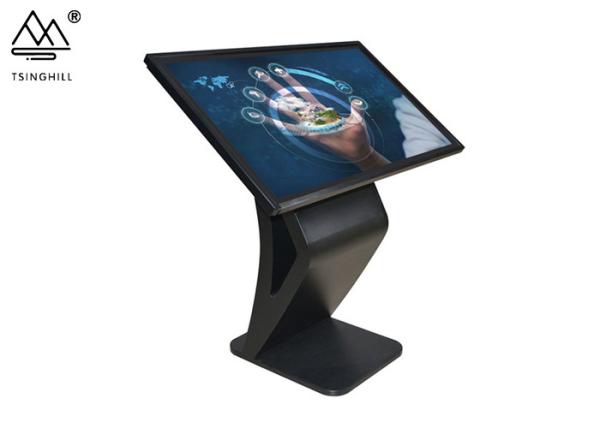

43 Inch Floor Standing Bill Payment Kiosk With Touch Screen For
Restaurant
Product Specifications:
| Specifications |
| Model No. | TQ43 |
| Panel size | 43“ TFT-LCD |
| Maximum resolution | 1366x768 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.511(H)×0.511(V) |
| Brightness (nits) | 500cd/m2 |
| Contrast | 1500:1 |
| Visual angle | 178°/178° |
| Response time | 8ms |
| Horizontal frequency | 50-70KHZ |
| Vertical frequency | 56-75KHZ |
| Life(hrs) | >60,000(hrs) |
| Touch Panel |
| Specification | Infrared touch screen |
Positioning
accuracy | ±2mms |
| Transmittance | ≥92% |
| Hardness | 7H |
| Click manner | double point, multipoint(optional) |
| Response time | <=10ms |
| Output Resolution | 4096X4096 |
| Life time | Single point of more than 60 million |
| Input and output |
| Composite video input | 3(BNC×3) |
| YUV Input | 1 (BNC×3) |
| S-video | 1(BNC X2) |
| D-15 pin RGB input | 1 |
| HD | 1 |
| Composite video output | 2(BNC×2) |
| L/R Audio input | 1 (RCAx2) |
| L/R Audio output | 1 (RCAx2) |
| USB2.0/Serial/SP2 input | 2(for touch screen use) |
| Video |
| Color system | PAL/NTSC/SECAM |
| Compatible HD input/DVI | 480P,576P,720P,1080I,1080P |
| 3D Comb filter | Yes |
| Video reduction noise | Yes |
| OSD display( screen menu display) |
| Menu language | Chinese/English( multiple language option required) |
| Computer |
| Main chipset | Intel G41+ICH7 |
| Main board | ONDA G41 |
| System bus frequency | 800/1066/1333 MHz |
| Graphics card | Integrated IntelGMX 4500 |
| Audio card | Integrated AC97 |
| Network card | Integrated 10/100/1000M adaptive |
| Memory | 2G DDRIII (max 4G) |
| Hard Disk | 320G SATA |
| Operation system | Windows 7 |
| Power |
| Power supply | AC100V~240V,50/60Hz |
| Maximum power consumption | <=55W |
| Standby power consumption | <=1W |
| Temperature |
| Working temperature | 0°C~50°C |
| Storage temperature | -10°C~60°C |
| Working humidity | 20%~80% |
| Storage humidity | 5%~95% |
| Appearance |
| Panel color/appearance | White, black, customized |
| Panel material | SPCC/Aluminum/Customized |
| Installation | Wall-mounted(default), desktop |
| Certificate | CE/FCC/3C/RoHS |
| Accessories | Manual,remote control, data line1.5 M, power line 1.8 M |
Product Parameters:
Large screen, 4K ultra HD, high contrast, high saturation, high
resolution, take the place of traditional projection display,
presenting an unprecedented visual spectacle.
High precision writing screen, extremely fine writing is still no
hindered, intelligent one-click writing, erase, color,
amplification, shrink, comparable to paper writing experience.
High-precision writing screen, very fine writing is still
unobstructed, intelligent one-key writing, erasing, changing color,
zooming in, zooming out, comparable to the paper writing experience
, high-precision touch, touch experience is smoother.
Realize synchronization of the display with the device connected.
Using mobile phones, tablets, and laptops to cast the screen to the
all-in-one computer, conference speakers can move interactively to
explain the content remotely.
Large and small screen synchronization, screen projection
interaction, using mobile phones, tablets, and laptops to project
the screen to the all-in-one computer, conference speakers can move
interactively to explain the content remotely , and the two-way
sidebar setting menu is as convenient and fast as a smartphone.
12mm ultra-narrow frame, with Bluetooth connection function,
built-in 6-channel theater-level surround sound, 8 million camera,
4-way pickup.
Android 7.1/8.1/9.1 operating system, built-in ARM Cortex A53
quad-core CPU main chip and GPU IMG GE 7800, running memory 3G,
built-in storage 32G.
Product Applications:
FAQ:
Q: What's your guarantee for the products?
A: All our products have one-year guarantee from the shipping date.
And it is OK to upgrade to two or three years guarantee with
additional cost.
Q: What kinds of payment methods does your company accept?
A: Most of payment methods are accepted here, such as T/T, Western
Union, Credit Card, etc.
Q: Do you accept door to door shipping service?
A: Yes, we do. Also we have favourable price by
DHL/FEDEX/UPS/TNT/ARAMEX, etc.
Q: Are you a factory or trading company ? What is the MOQ of touch
screen?
A: Yes, we are factory direct sales and have some items in stock ,
you can order 1pc for test.
Q: What is the delivery time? Where do you ship of touch screen?
A: Generally speaking , the goods can be delivered within 5-7 days
for small orders, and the production time about 15 days for more
than 10pcs. In addition, our factory is located in Foshan,
Guangdong. If you have forwarder in Shenzhen or Guangzhou, we can
help to ship goods to your forwarder .
Q: Could you provide OEM&ODM service of touch screen?
A: Of course , including software, packaging, product logo,
etc.,consult customer service for more details.
Q: What is the warranty period of touch screen?
A: Normally it is 1 year, we have a professional after-sales
service team, specific details can consult customer service.
