49 Inch Floor Standing Bill Payment Kiosk With Touch Screen For
Restaurant
Product Specifications:
| Specifications |
| Model No. | TQ49 |
| Panel size | 49“ TFT-LCD |
| Maximum resolution | 1366x768 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.511(H)×0.511(V) |
| Brightness (nits) | 500cd/m2 |
| Contrast | 1500:1 |
| Visual angle | 178°/178° |
| Response time | 8ms |
| Horizontal frequency | 50-70KHZ |
| Vertical frequency | 56-75KHZ |
| Life(hrs) | >60,000(hrs) |
| Touch Panel |
| Specification | Infrared touch screen |
Positioning
accuracy | ±2mms |
| Transmittance | ≥92% |
| Hardness | 7H |
| Click manner | double point, multipoint(optional) |
| Response time | <=10ms |
| Output Resolution | 4096X4096 |
| Life time | Single point of more than 60 million |
| Input and output |
| Composite video input | 3(BNC×3) |
| YUV Input | 1 (BNC×3) |
| S-video | 1(BNC X2) |
| D-15 pin RGB input | 1 |
| HD | 1 |
| Composite video output | 2(BNC×2) |
| L/R Audio input | 1 (RCAx2) |
| L/R Audio output | 1 (RCAx2) |
| USB2.0/Serial/SP2 input | 2(for touch screen use) |
| Video |
| Color system | PAL/NTSC/SECAM |
| Compatible HD input/DVI | 480P,576P,720P,1080I,1080P |
| 3D Comb filter | Yes |
| Video reduction noise | Yes |
| OSD display( screen menu display) |
| Menu language | Chinese/English( multiple language option required) |
| Computer |
| Main chipset | Intel G41+ICH7 |
| Main board | ONDA G41 |
| System bus frequency | 800/1066/1333 MHz |
| Graphics card | Integrated IntelGMX 4500 |
| Audio card | Integrated AC97 |
| Network card | Integrated 10/100/1000M adaptive |
| Memory | 2G DDRIII (max 4G) |
| Hard Disk | 320G SATA |
| Operation system | Windows 7 |
| Power |
| Power supply | AC100V~240V,50/60Hz |
| Maximum power consumption | <=55W |
| Standby power consumption | <=1W |
| Temperature |
| Working temperature | 0°C~50°C |
| Storage temperature | -10°C~60°C |
| Working humidity | 20%~80% |
| Storage humidity | 5%~95% |
| Appearance |
| Panel color/appearance | White, black, customized |
| Panel material | SPCC/Aluminum/Customized |
| Installation | Wall-mounted(default), desktop |
| Certificate | CE/FCC/3C/RoHS |
| Accessories | Manual,remote control, data line1.5 M, power line 1.8 M |
Product Parameters:
There are two front USB channels, one of which is dual-channel
recognition, the front smart pen adsorption card slot, no screw
instant adsorption, easy to operate.
One-click call whiteboard software 2048 original handwriting book,
one-click call PPT (page up and down, full annotation, office save
the original ecology).
One-key call whiteboard software 2048 level original handwriting,
one-key call PPT (up and down the page, the whole annotation, save
the original ecology of Office).
Multi-functional intelligent stylus 4 flying mouse (magnifying
glass, empty mouse, spotlight, laser pen).
Multifunctional smart stylus 4 big flying squirrels (magnifying
glass, air mouse, spotlight, laser pointer).
Supports 1-channel 4K-60FPS decoding or up to 4-channel
high-definition simultaneous decoding, supports 1-channel USB3.0,
2-channel USB2.0 expansion interface ; supports 2-channel HDMI

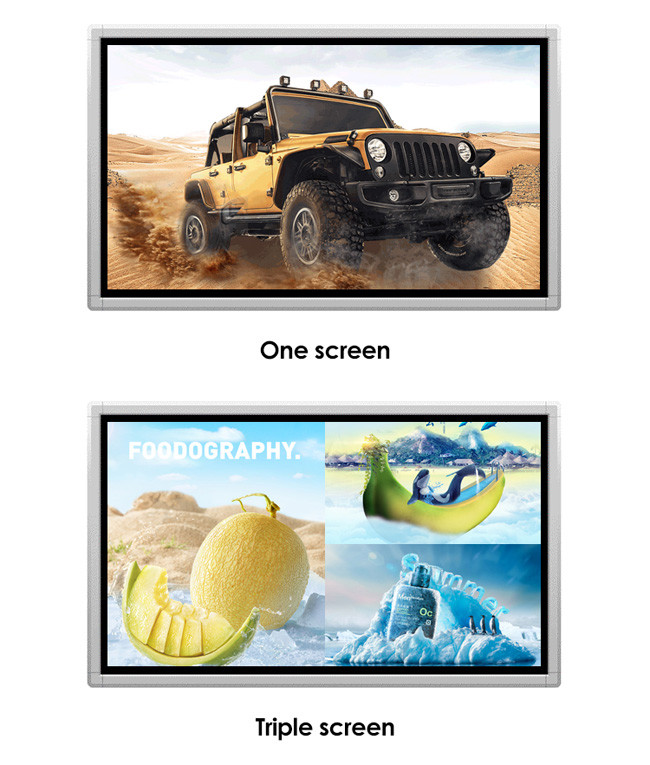

input signal, supports multi-screen display, and supports up to 2
input window display ( 2ch HDMI+ built-in player)
Product Details:
FAQ:
Q: Could you provide OEM&ODM service of touch screen?
A: Of course , including software, packaging, product logo,
etc.,consult customer service for more details.
Q: What is the warranty period of touch screen?
A: Normally it is 1 year, we have a professional after-sales
service team, specific details can consult customer service.
Q: How do you guarantee the quality of your touch screen?
A: Our products comply with ISO9001 quality system and CE/FCC/ROHS
standards. All our products pass strict QC inspection in the
production process. In particular, export products need to complete
72-hour aging test to ensure no problems before shipment.
Q: How do you arrange transportation for touch screen?
A: If small sample orders suggest express delivery (7-10days) or
air freight (10-15 days), if bulk production advise by sea more
favorable , please consult customer service for more details!
Q: What services can we provide?
A: Accepted Delivery Terms: FOB, EXW.
Accepted Payment Currency: USD, CNY.
Accepted Payment Type: T/T, West Union, Paypal.
Language Spoken:English, Chinese.
Q: How long does the sample be prepare for?
A: Usually 5-9 working days for common spec and package,
customization samples should to be negotiated.
Q: How long is the warranty time?
Standard warranty :12 month, can be extended.
