Multifunctional 49 Inch Smart Information Inquiry Kiosk For Bank
Use
Product Specifications:
| Specifications |
| Model No. | TQ49 |
| Panel size | 49“ TFT-LCD |
| Maximum resolution | 1366x768 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.511(H)×0.511(V) |
| Brightness (nits) | 500cd/m2 |
| Contrast | 1500:1 |
| Visual angle | 178°/178° |
| Response time | 8ms |
| Horizontal frequency | 50-70KHZ |
| Vertical frequency | 56-75KHZ |
| Life(hrs) | >60,000(hrs) |
| Touch Panel |
| Specification | Infrared touch screen |
Positioning
accuracy | ±2mms |
| Transmittance | ≥92% |
| Hardness | 7H |
| Click manner | double point, multipoint(optional) |
| Response time | <=10ms |
| Output Resolution | 4096X4096 |
| Life time | Single point of more than 60 million |
| Input and output |
| Composite video input | 3(BNC×3) |
| YUV Input | 1 (BNC×3) |
| S-video | 1(BNC X2) |
| D-15 pin RGB input | 1 |
| HD | 1 |
| Composite video output | 2(BNC×2) |
| L/R Audio input | 1 (RCAx2) |
| L/R Audio output | 1 (RCAx2) |
| USB2.0/Serial/SP2 input | 2(for touch screen use) |
| Video |
| Color system | PAL/NTSC/SECAM |
| Compatible HD input/DVI | 480P,576P,720P,1080I,1080P |
| 3D Comb filter | Yes |
| Video reduction noise | Yes |
| OSD display( screen menu display) |
| Menu language | Chinese/English( multiple language option required) |
| Computer |
| Main chipset | Intel G41+ICH7 |
| Main board | ONDA G41 |
| System bus frequency | 800/1066/1333 MHz |
| Graphics card | Integrated IntelGMX 4500 |
| Audio card | Integrated AC97 |
| Network card | Integrated 10/100/1000M adaptive |
| Memory | 2G DDRIII (max 4G) |
| Hard Disk | 320G SATA |
| Operation system | Windows 7 |
| Power |
| Power supply | AC100V~240V,50/60Hz |
| Maximum power consumption | <=55W |
| Standby power consumption | <=1W |
| Temperature |
| Working temperature | 0°C~50°C |
| Storage temperature | -10°C~60°C |
| Working humidity | 20%~80% |
| Storage humidity | 5%~95% |
| Appearance |
| Panel color/appearance | White, black, customized |
| Panel material | SPCC/Aluminum/Customized |
| Installation | Wall-mounted(default), desktop |
| Certificate | CE/FCC/3C/RoHS |
| Accessories | Manual,remote control, data line1.5 M, power line 1.8 M |
Product Parameters:

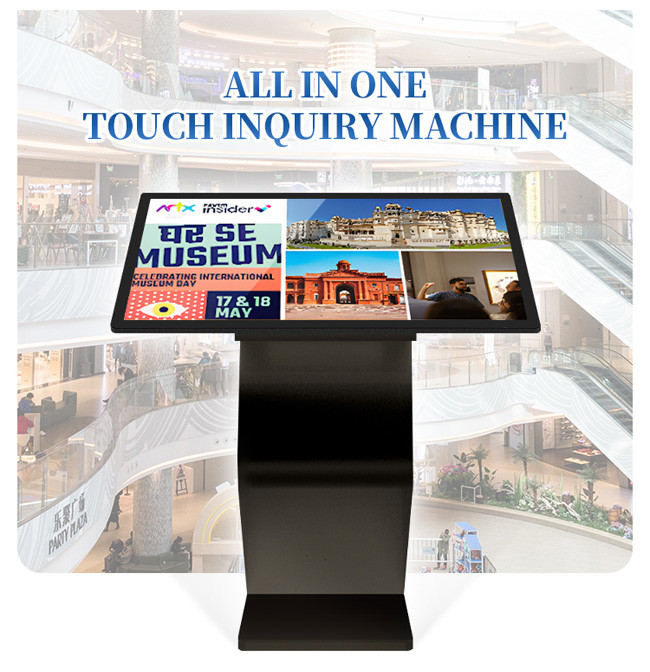

Touch Query System
Set system management, information inquiry, navigation,
self-service, multimedia teaching and other functions in one,
suitable for a variety of industries inquiry.
E-Signature
Font size can be adjusted, background can be changed, external
printer, camera
Precise Touch And Fast Response
Perfectly infrared, capacitive touch screen, support a variety of
touch gesture, highly accurate, fast response
Intelligent Split Screen Multi-purpose
Video and pictures can be played simultaneously, logo, whether,
time, date and scrolling subtitles can also appear at the same
time. Massive split screen modules can be applied, or you can
design your own split screen modules to meet the needs of
multi-task.
Built-in WIFI Receiver
Built-in wireless WIFI module, enjoy network experience download
function, make data interaction more convenient, multi-person
interaction with the same screen competitive game entertainment.
Cloud Intelligent Information Release
The use of cloud intelligent information release system, remote
management advertising machine. Multi-terminal login, cloud
management, real-time monitoring, synchronous update and release ,
materials.
Product Details:
FAQ:
Q: Could you provide OEM&ODM service of touch screen?
A: Of course , including software, packaging, product logo,
etc.,consult customer service for more details.
Q: What is the warranty period of touch screen?
A: Normally it is 1 year, we have a professional after-sales
service team, specific details can consult customer service.
Q: How do you guarantee the quality of your touch screen?
A: Our products comply with ISO9001 quality system and CE/FCC/ROHS
standards. All our products pass strict QC inspection in the
production process. In particular, export products need to complete
72-hour aging test to ensure no problems before shipment.
Q: How do you arrange transportation for touch screen?
A: If small sample orders suggest express delivery (7-10days) or
air freight (10-15 days), if bulk production advise by sea more
favorable , please consult customer service for more details!
Q: What services can we provide?
A: Accepted Delivery Terms: FOB, EXW.
Accepted Payment Currency: USD, CNY.
Accepted Payment Type: T/T, West Union, Paypal.
Language Spoken:English, Chinese.
Q: How long does the sample be prepare for?
A: Usually 5-9 working days for common spec and package,
customization samples should to be negotiated.
Q: How long is the warranty time?
Standard warranty :12 month, can be extended.
